New

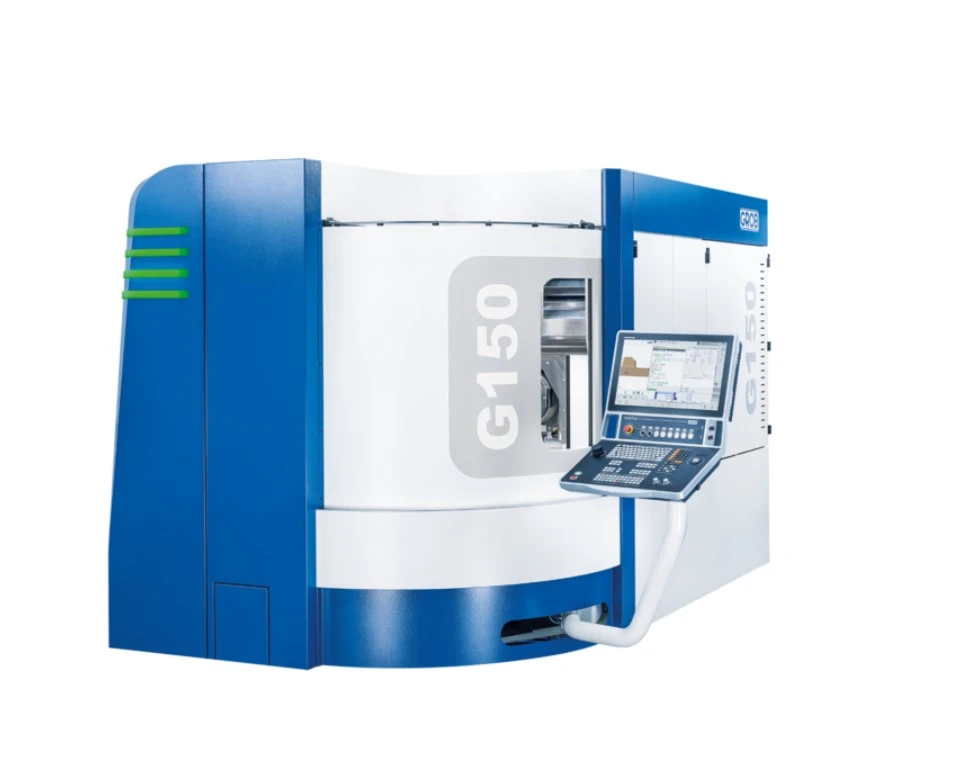

GROB G150 UNIVERSAL MACHINING CENTER
Universal Machining Centers
The G150 is the smallest universal machining center in the unique G-module concept of GROB and enables customers from various industries to machine with the highest precision.
| Working Travels X: | 17.72" | 450.09 mm |
| Working Travels Y: | 26.38" | 670.05 mm |
| Working Travels Z: | 26.18" | 664.97 mm |
| Max. Speeds X: | 50 m/min | 50 m/min |
| Max. Speeds Y: | 40 m/min | 40 m/min |
| Max. Speeds Z: | 60 m/min | 60 m/min |
| Interference Diameter | 22.83" | 579.88 mm |
Chip-to-chip time t1
2.6 according to VDI 2852 (s) relative to speed (rpm)
Positioning accuracy
0.006 in X-/Y'-/Z-axis (mm)
Table diameter
380 (mm)
Table load
250/220 without/with pallet (kg)
Total weight
14,600/15,400 without/with pallet changer (kg)
Tool length for single disk-type tool magazine
265 HSK-40 / HSK-A63 (mm)
