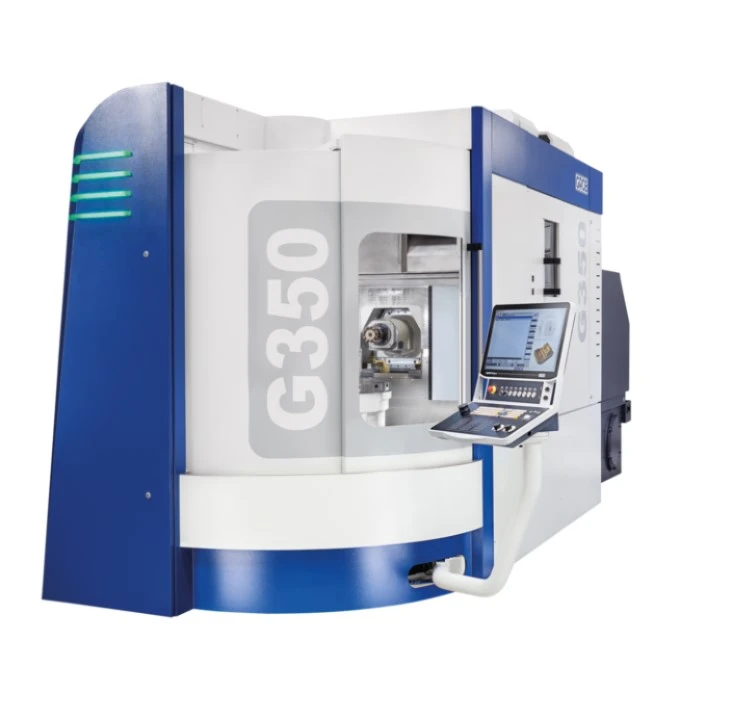

Introducing the new Grob G350 5-Axis Universal Machining Center which has a working travel X of 23.62", Y of 33.66" and Z of 29.53". It's maximum speeds are 70 m/min in X, 45 m/min in Y and 90 m/min in Z axis respectively. This machine provides positioning accuracy of 0.006 in X-/Y'/Z-axis and it comes with a table load of 338/400 with/without pallet and a total weight of 15,300/17,500 without/with pallet changer. The tool length for single disk-type tool magazine is 365 HSK-A63 and for double disk-type tool magazine it is 365/180/550 HSK-A63.
Chip-to-chip time t1
2.7 according to VDI 2852 (s) relative to speed (rpm)
Positioning accuracy
0.006 in X-/Y'-/Z-axis (mm)
Table diameter
570(mm)
Table load
338/400 with/without pallet (kg)
Total weight
15,300/17,500 without/with pallet changer (kg)
Tool length for single disk-type tool magazine
365 HSK-A63 (mm)
Tool length for double disk-type tool magazine
365/180/550 HSK-A63 (bottom/top/over both disks) (mm)
