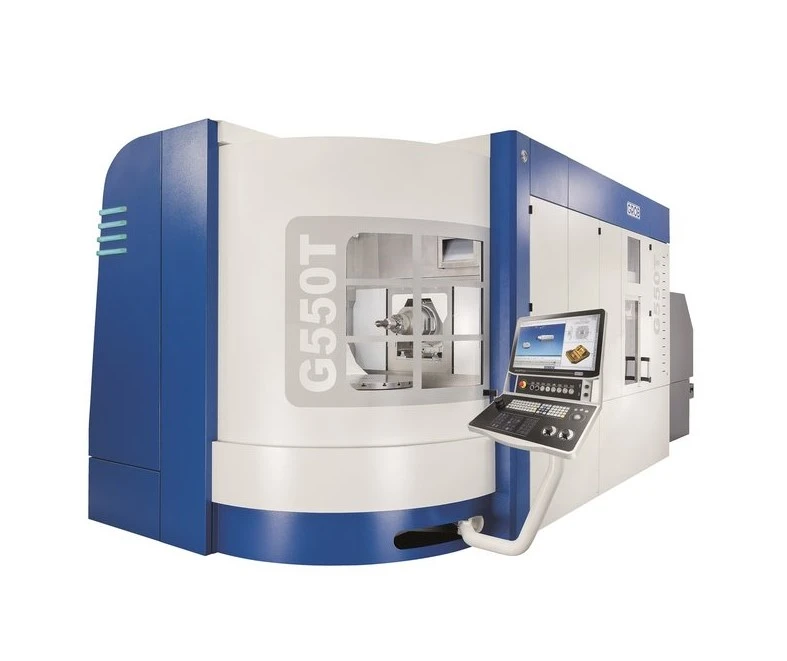

GROB G550T 5-AXIS MILL TURN

Have one to sell?
918-622-0018
sales@mtssales.com
ConditionNew
Have one to sell?

Overview

Type:
Universal Machining Centers
Manufacturer:
Grob
Model:
G550T
Condition:
Build To Order
Status:
For Sale

Description

The G550T mill-turn machining center offers the machining sector almost limitless possibilities for machining parts made of the most diverse materials.

Working Travels X:31.5"800.1 mm
Working Travels Y:40.16"1,020.1 mm
Working Travels Z:38.19"970.03 mm
Max. Speeds X:65 m/min65 m/min
Max. Speeds Y:50 m/min50 m/min
Max. Speeds Z:80 m/min80 m/min
Interference Diameter35.43"899.92 mm

Chip-to-chip time t1
2.9 according to VDI 2852 (s) relative to speed (rpm)

Positioning accuracy
0.006 in X-/Y'-/Z-axis (mm)

Table diameter
770 (mm)

Table load
600/750 with/without pallet (kg)

B'-axis speed
800 nmax (rpm)

Total weight
25,700 (kg)

Tool length for single disk-type tool magazine
465 HSK-A/T63 (mm)

Tool length for double disk-type tool magazine
465/280/700 HSK-A/T63 (bottom/top/over both disks) (mm)
