GROB G750T 5-AXIS MILL TURN

Have one to sell?
918-622-0018
sales@mtssales.com
ConditionNew
Have one to sell?

Overview

Type:
Universal Machining Centers
Manufacturer:
Grob
Model:
G750T
Condition:
Build To Order
Status:
For Sale

Description

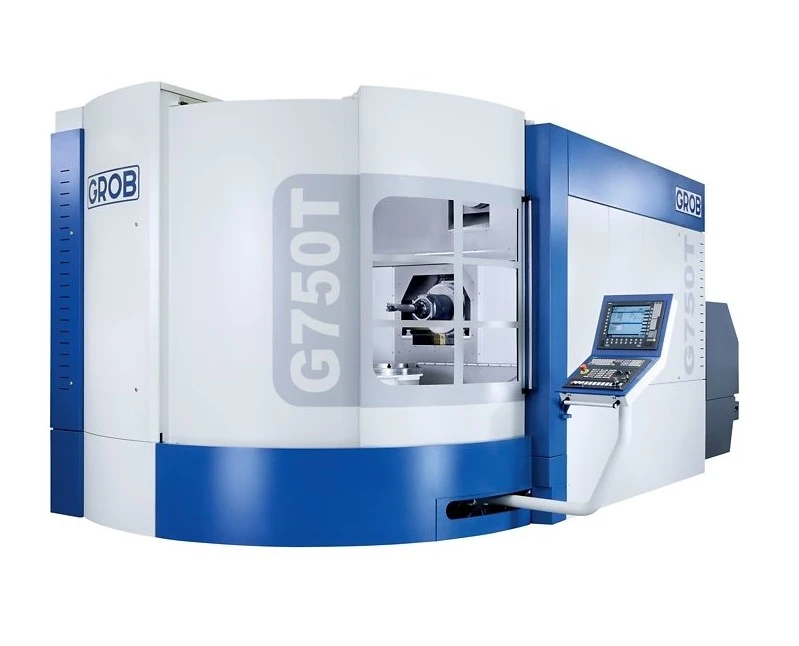

The G750T mill-turn machining center is designed to machine large parts from the most diverse materials with incredible stability and precision down to the very last detail.

Working Travels X:39.37"1,000 mm
Working Travels Y:43.31"1,100.1 mm
Working Travels Z:46.06"1,169.9 mm
Max. Speeds X:60 m/min60 m/min
Max. Speeds Y:50 m/min50 m/min
Max. Speeds Z:75 m/min75 m/min
Interference Diameter50.39"1,279.9 mm

Chip-to-chip time t1
3.4 according to VDI 2852 (s) relative to speed (rpm)

Positioning accuracy
0.006 in X-/Y'-/Z-axis (mm)

Table diameter
950(mm)

Table load
1,000/1,500 with/without pallet (kg)

B'-axis speed
500 n(minmax)

Total weight
37,000 (kg)

Tool length for double disk-type tool magazine
650/500 (front/back) (mm)
