Sold

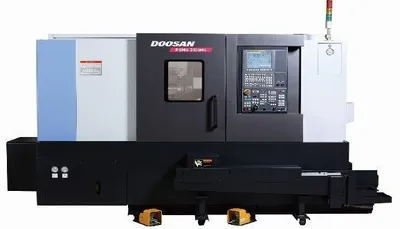

2016 Doosan Puma 2100SY High Performance Sub Spindle Y-Axis Mill-Drill Turning Center

CNC Lathes
Manufacturer:
DOOSAN
Model:
PUMA 2100SY
Year:
2016
Stock #:
305503
Puma 2100SY turning centers are designed for long-term high accuracy and superior surface finishes. High speed turret indexing and ultra-fast rapid traverse rates minimize non-cutting time. Mill-drill capability and Y-axis with a full C-axis sub spindle greatly reduce the need for secondary operations, eliminating additional set-up and handling costs. Classic manufacturing methods and ultra-rigid construction are combined with advanced technological features to provide exceptional value. Integral spindle motors on both main and sub spindles provide improved milling accuracy and faster spindle acceleration.
Swing26.8"680.72 mm
Machining Length20.47"519.94 mm
Chuck Size8"203.2 mm
Bar Capacity2.68"68.072 mm
Power30 hp22.4 kW
Max RPM5,000 RPM5,000 RPM
Turning Dia15.98"405.89 mm
Live ToolingYesYes
Sub SpindleYesYes
ControlCNC (Fanuc OiTF)CNC (Fanuc OiTF)
Dimensions159" x 74" x 85"159" x 74" x 85"
Weight13,000 lbs13,000 lbs

Chip Conveyor
