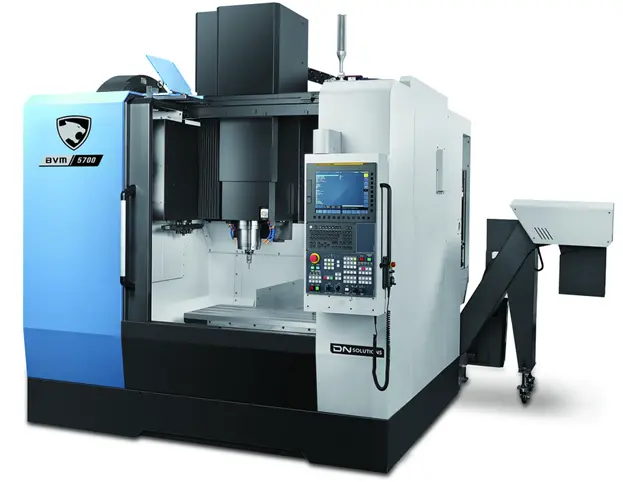

BVM 5700 Premium VMC designed for High Speed and High Precision
Vertical Machining CentersThe BVM 5700 represents Doosan's latest premium class VMC, offering both high
speed and high precision machining in a rugged and compact bridge frame
structure. Designed for those who demand more from their 3-axis VMC, the BVM
5700 offers numerous high-end appointments normally found only on exotic
machine tools. Among these features are a built-in 15,000-RPM spindle, ball nut
cooling and spindle thermal displacement control with multiple sensors
strategically placed around the machine to compensate for heat generated by
machining. Optimizations to the accel\decel of the axes drive system, spindle, and
ATC reduce non-cutting time to a minimum for outstanding productivity.
X | 41.33" | 1,049.8 mm |
Y | 22.44" | 569.98 mm |
Z | 18.11" | 459.99 mm |
Power | 49.6 hp | 37 kW |
RPM | 15,000 RPM | 15,000 RPM |
# ATC | 40 | 40 |
Taper | Cat 40 | Cat 40 |
Table-W | 22.44" | 569.98 mm |
Table-L | 51.18" | 1,300 mm |
# Axis | 3 | 3 |
Control | CNC (Fanuc Oi-P) | CNC (Fanuc Oi-P) |
