New

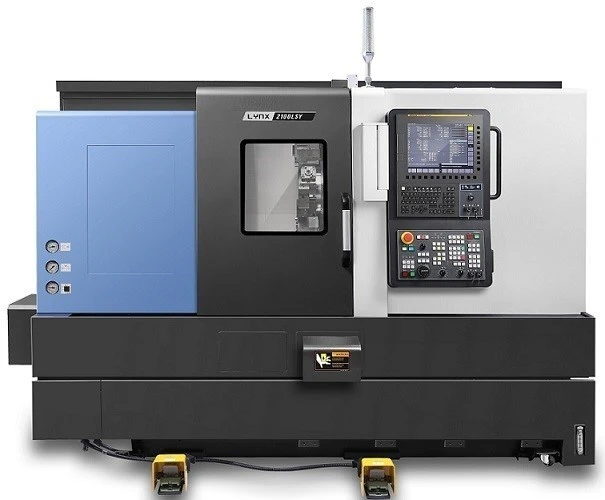

Lynx 2100LSYB High Performance Sub Spindle Y-Axis Mill-Drill Turning Center
CNC LathesLynx 2100LSYB turning centers are designed for long-term, high accuracy and superior surface finishes. High speed turret indexing and ultra-fast rapid traverse rates minimize non-cutting time. Mill-drill capability and Y-axis with a full C-axis sub spindle greatly reduce the need for secondary operations, eliminating additional set-up and handling costs. Classic manufacturing methods and ultra-rigid construction are combined with advanced technological features to provide exceptional value.
Swing | 23.6" | 599.44 mm |
Machining Length | 20" | 508 mm |
Chuck Size | 8" | 203.2 mm |
Bar Capacity | 2.59" | 65.786 mm |
Power | 20 hp | 14.9 kW |
Max RPM | 4,500 RPM | 4,500 RPM |
Turning Dia | 11.8" | 299.72 mm |
Live Tooling | Yes | Yes |
Sub Spindle | Yes | Yes |
Control | CNC (Fanuc OiTP) | CNC (Fanuc OiTP) |
