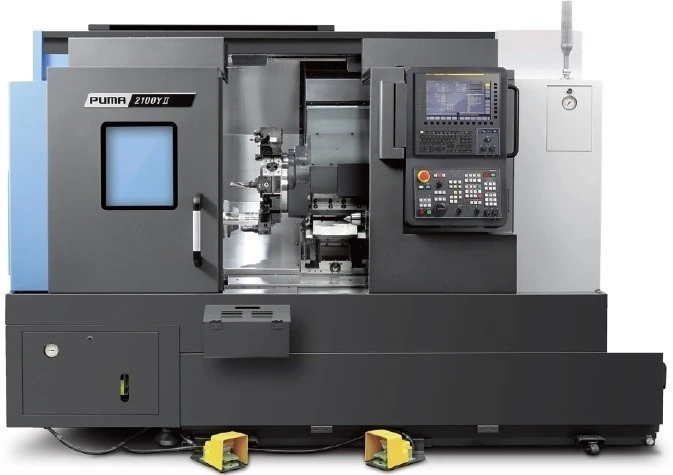

Puma 2100SY II turning centers are designed for long-term high accuracy and superior surface finishes. High speed turret indexing and ultra-fast rapid traverse rates minimize non-cutting time. Mill-drill capability and Y-axis with a full C-axis sub spindle greatly reduce the need for secondary operations, eliminating additional set-up and handling costs. Classic manufacturing methods and ultra-rigid construction are combined with advanced technological features to provide exceptional value. Integral spindle motors on both main and sub spindles provide improved milling accuracy and faster spindle acceleration.
Puma 2100SY II turning centers are designed for long-term high accuracy and superior surface finishes. High speed turret indexing and ultra-fast rapid traverse rates minimize non-cutting time. Mill-drill capability and Y-axis with a full C-axis sub spindle greatly reduce the need for secondary operations, eliminating additional set-up and handling costs. Classic manufacturing methods and ultra-rigid construction are combined with advanced technological features to provide exceptional value. Integral spindle motors on both main and sub spindles provide improved milling accuracy and faster spindle acceleration.
Imperial
| Swing | 26.8" |
| Machining Length | 20.47" |
| # Axis | 4 |
| Chuck Size | 8" |
| Bar Capacity | 2.59" |
| Power | 30 hp |
| Max RPM | 5,000 RPM |
| Turning Dia | 15.98" |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Control | CNC (Fanuc Oi-Plus) |
