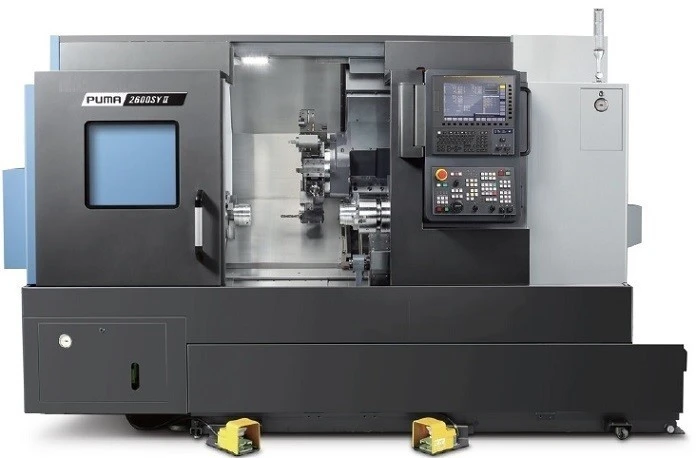

Puma 2600SY II turning centers are designed for long-term high accuracy and superior surface finishes. High speed turret indexing and ultra-fast rapid traverse rates minimize non-cutting time. Mill-drill capability and Y-axis with a full C-axis sub spindle greatly reduce the need for secondary operations, eliminating additional set-up and handling costs. Classic manufacturing methods and ultra-rigid construction are combined with advanced technological features to provide exceptional value. Integral spindle motors on both main and sub spindles provide improved milling accuracy and faster spindle acceleration.
|Machining Length||29.9"||759.46 mm|
|Chuck Size||10"||254 mm|
|Bar Capacity||3.23"||82.042 mm|
|Power||30 hp||22.4 kW|
|Max RPM||4,000 RPM||4,000 RPM|
|Turning Dia||14.8"||375.92 mm|
|Control||CNC (Fanuc OiTP)||CNC (Fanuc OiTP)|
