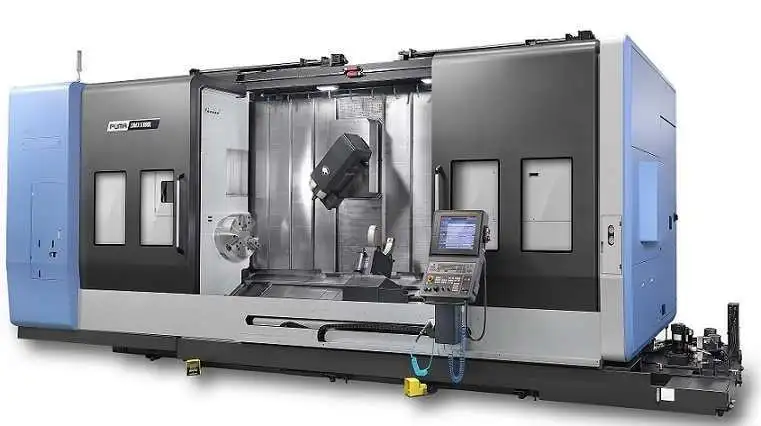

SMX 5100LSB High Performance Opposed Spindle Multi-Axis ATC Milling and Turning Center with B-axis
5-Axis or More CNC LathesSMX5100LSB multi-task milling/turning centers are designed for heavy and interrupted
cutting, long-term high accuracy and superior surface finishes. High speed tool change
with fast rapid traverse rates minimize non-cutting time. C-axis contouring, Y-axis offcenter
and B-axis any-angle milling/drilling allow for single set-up completion of highly
complex work pieces. Gear box driven spindle motor provides improved performance
with high torque machining. Multi-tasking capabilities increase productivity and provide
for just-in-time production requirements by reducing lead time, changeover time, set-up
time, and time between operations.
Swing | 32.67" | 829.82 mm |
Machining Length | 120" | 3,048 mm |
Bar Capacity | 6.5" | 165.1 mm |
Power | 50 hp | 37.3 kW |
Max RPM | 1,500 RPM | 1,500 RPM |
Turning Dia | 32.67" | 829.82 mm |
Control | CNC (Fanuc 31iB5 CUFOS) | CNC (Fanuc 31iB5 CUFOS) |
