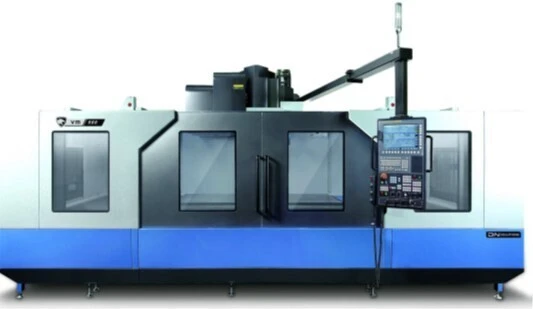

VM 960 Heaviest Duty Vertical Machining Center
Vertical Machining Centers
The VM series represents DN Solutions heaviest duty and most powerful
machines in the Vertical Machining Center lineup. They are built to withstand
extremely demanding machining conditions for years of trouble free
performance and exceptional precision. Powerful axes drives and heavy duty,
large box way construction provides for unsurpassed rigidity under the heaviest
machining loads. Designed to world class standards and delivering world class
results, the VM series is the uncompromising choice when nothing but the
biggest and toughest machines are required.
| X | 78.7" | 1,999 mm |
| Y | 37.8" | 960.12 mm |
| Z | 31.5" | 800.1 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 40 | 40 |
| Taper | Cat 50 Big Plus | Cat 50 Big Plus |
| Table-W | 37.4" | 949.96 mm |
| Table-L | 94.5" | 2,400.3 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc 31iB) | CNC (Fanuc 31iB) |
