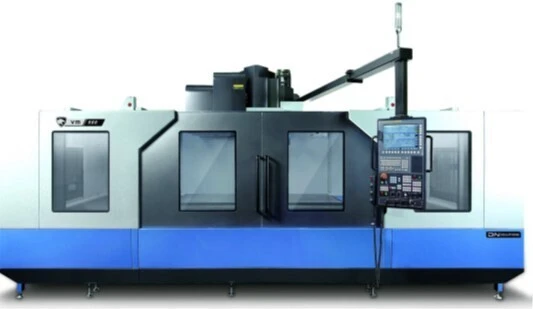

VM 960L Heaviest Duty Vertical Machining Center

VM 960L Heaviest Duty Vertical Machining Center

Have one to sell?
918-622-0018
sales@mtssales.com
ConditionNew
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
DN Solutions
Model:
VM 960L
Condition:
Build To Order
Status:
For Sale

Description

The VM series represents DN Solutions heaviest duty and most powerful
machines in the Vertical Machining Center lineup. They are built to withstand
extremely demanding machining conditions for years of trouble free
performance and exceptional precision. Powerful axes drives and heavy duty,
large box way construction provides for unsurpassed rigidity under the heaviest
machining loads. Designed to world class standards and delivering world class
results, the VM series is the uncompromising choice when nothing but the
biggest and toughest machines are required.

X94.5"2,400.3 mm
Y37.8"960.12 mm
Z31.5"800.1 mm
Power35 hp26.1 kW
RPM6,000 RPM6,000 RPM
# ATC4040
TaperCat 50 Big PlusCat 50 Big Plus
Table-W37.4"949.96 mm
Table-L102.36"2,599.9 mm
# Axis33
ControlCNC (Fanuc 31iB)CNC (Fanuc 31iB)
