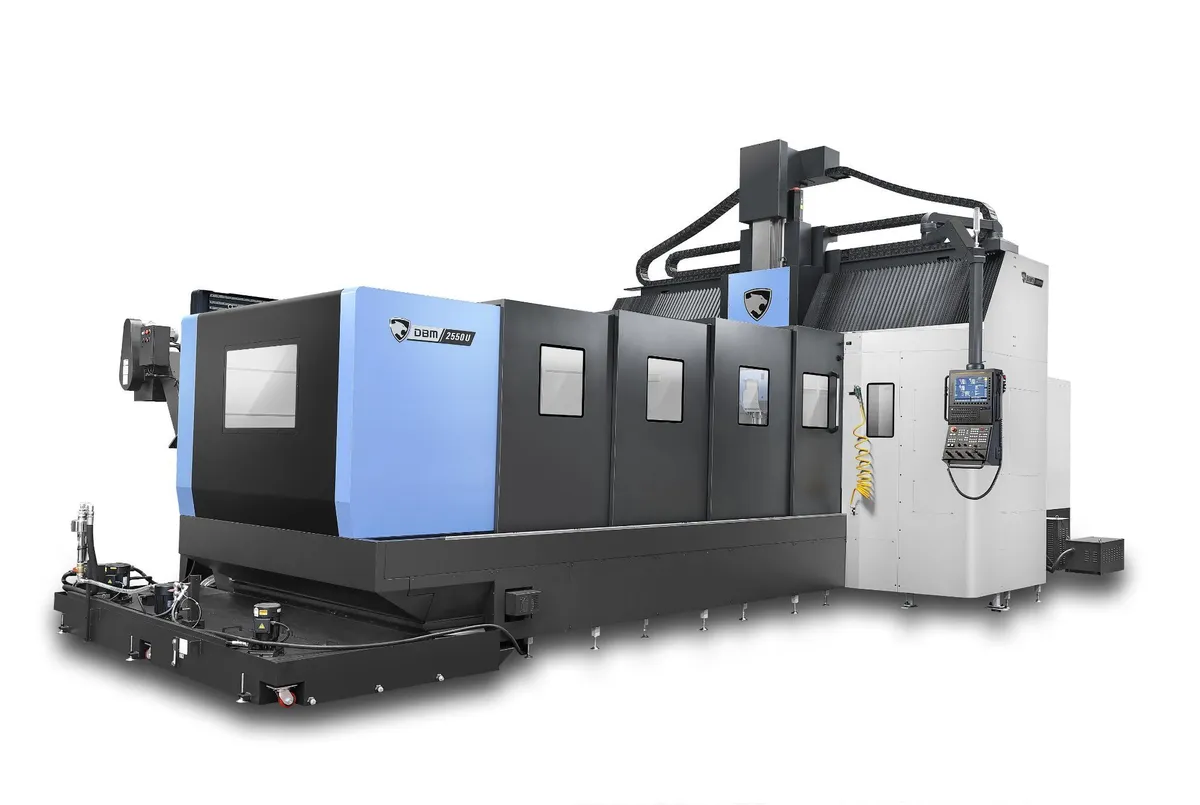

DBM 2550 Bridge Type Machining Center
Have one to sell?
ConditionNew
New
The DBM 2550 is a multi-purpose, fixed cross rail, double-column machining center for applications such as heavy duty machining of large parts and high precision dies and molds. Designed with the highest specifications in its class, the DBM 2550 provides a broad range of machining capabilities and optional equipment, together with many convenient functions for the operator.
The highly rigid, square type box guideway ram has a cross section of 380 x 380mm (14.96 x 14.96 inch), which is the biggest in its class. The ram slides on (8) anti-friction guides that are the full height of the saddle for extremely high rigidity and vibration dampening.
• Max. spindle speed, 8000 r/min
• 90d angle head attachment_L350 6k r/min_TSC
• Head attachment changer, swing type_2 station
• Attachment indexing increment, 1 degree
• Tool shank type, big plus CAT50
• Tool storage capacity, 60 ea
• Coolant gun
• Flood coolant pump, 1.8 kw_0.69 mpa_200_circular
• Oil skimmer, belt type
• Through spindle coolant, 290 PSI
• Scale Air
• Switchable TSC & TSA
• Renishaw RMP600 part probe kit (probe, calibration block, ring)
• Renishaw NC4 tool setter kit (NC4, master tool)
• Chip conveyor type, installation type_pit/ground convertible (hinged type)
• Raised column, 300 mm
• Z axis extended travel, 1100mm stroke
• Linear scale (X, Y, Z axes)
• Spindle thermal compensation
• Operator step
• Machine cover type, splash guard_w/o top_high
• DN Solutions tool load monitoring
• 1 MPG_portable type
• Mono-Lever Switches for X, Y, Z Axes
• Electric cabinet light
• Electrical leakage breaker
• Electric line filter
• AICC II_1000 blocks
• Automatic power off (incl. shunt trip coil)
• Auto Power ON
• Easy operating system, IHMi (EZi & machining cycle)
• Fast ethernet
• Number of tool offsets, 400 pairs
• Part program storage, 10240m(4mb)_1000 ea
• Work coordinate system, 48 pairs
• Maintenance tool kit, L-wrench and spanner set
