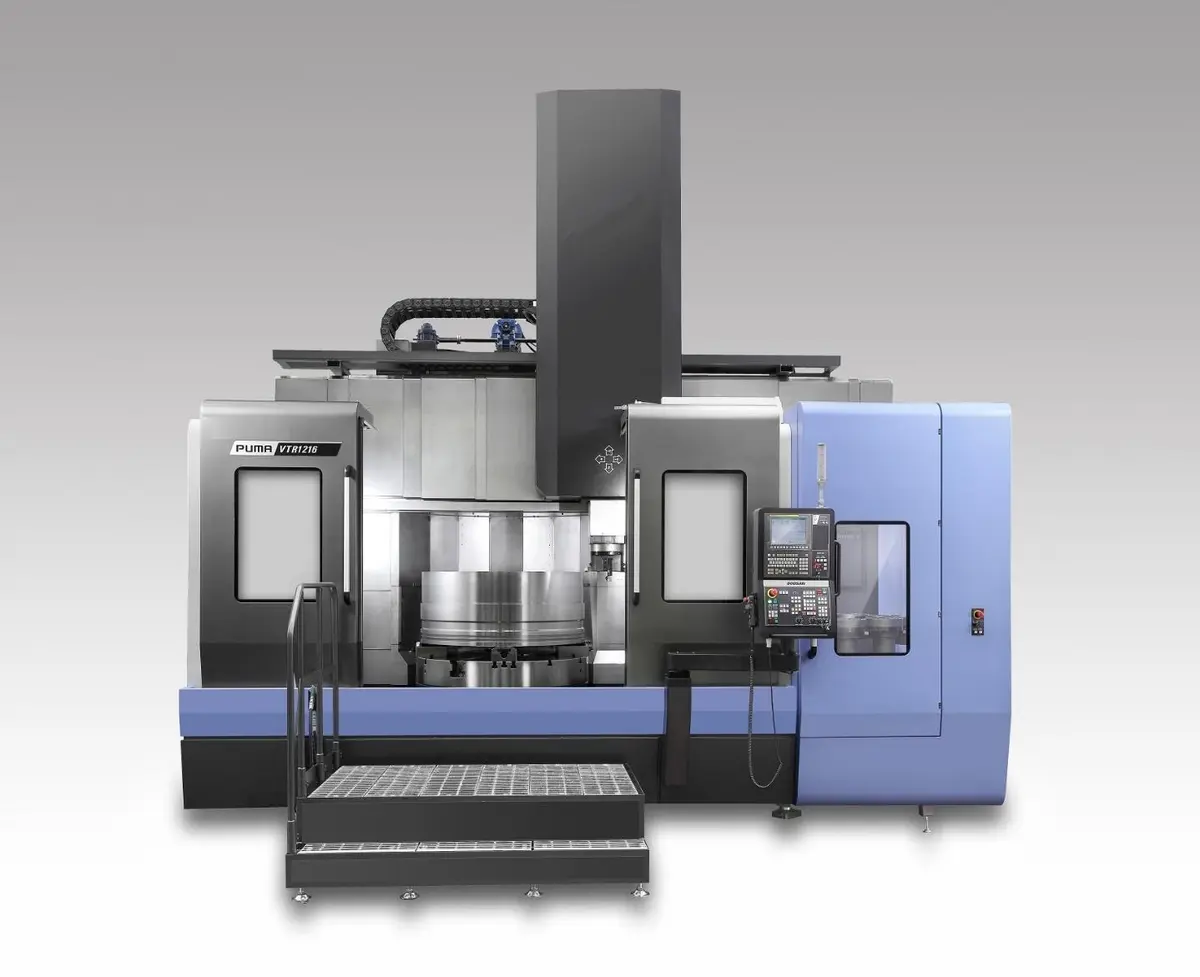

Puma VTR 1216M Vertical CNC Turning Center

Have one to sell?

sales@mtssales.com

ConditionNew

Quantity

DN Solutions Puma VTR 1216M Vertical Boring Mills (incld VTL) | Machine Tool Specialties (1)

DN Solutions Puma VTR 1216M Vertical Boring Mills (incld VTL) | Machine Tool Specialties

New

Have one to sell?

Overview

Type:

Vertical Boring Mills (incld VTL)

Manufacturer:

Model:

Puma VTR 1216M

Condition:

Build To Order

Status:

For Sale

Description

Puma VTR1216M live spindle, vertical turning centers are designed for large diameter parts requiring milling operations in addition to turning. The VTR1216M is well suited to larger parts typical of aerospace, oil and gas, construction, and wind turbine applications. The rigid design utilizes Meehanite® cast iron components and box way construction.

Specifications

ImperialMetric

Swing	66.9"	1,699.3 mm
Work Ht-U/R	49.2"	1,249.7 mm
Power	90 hp	67.1 kW
RPM	400 RPM	400 RPM
Control	CNC (Fanuc OiTP)	CNC (Fanuc OiTP)

Equipped With

• Main spindle motor power, a40hv/7000_70/45/37 kw
• Chuck, 55 inch, combination
• Dual pressure chucking
• Chuck clamp confirmation
• Tool storage capacity, turn-7ea/mill-8ea/cap-1ea
• Coolant gun
• Coolant pump for ram, 3.7 kw_3.0 mpa, cyclone filter
• Oil skimmer, belt type
• Automatic front door, with safety device
• Linear scales (X, Z axis)
• Chip conveyor type, hinged belt_3 conveyor side
• Tool setter, automatic,pneumatic
• Working platform, 1870(l)_1017(d)_476(h)
• Mist collector, preparation,hood only (d200)
• Electric cabinet light
• Electric line filter
• Automatic power off
• DNS tool load monitoring
• Signal tower, 3 color_(red.yellow.green)
• (1) Base tool holder - for inch or metric
• (3) Quad tool holder – 1-1/4” square tool
• (2) ID tool holder - 1-1/4" square tool
• (1) Boring bar holder – 4” diameter
• Additional LED Lights in Work Zone and ATC
• 2MB-1000 ea part program storage
