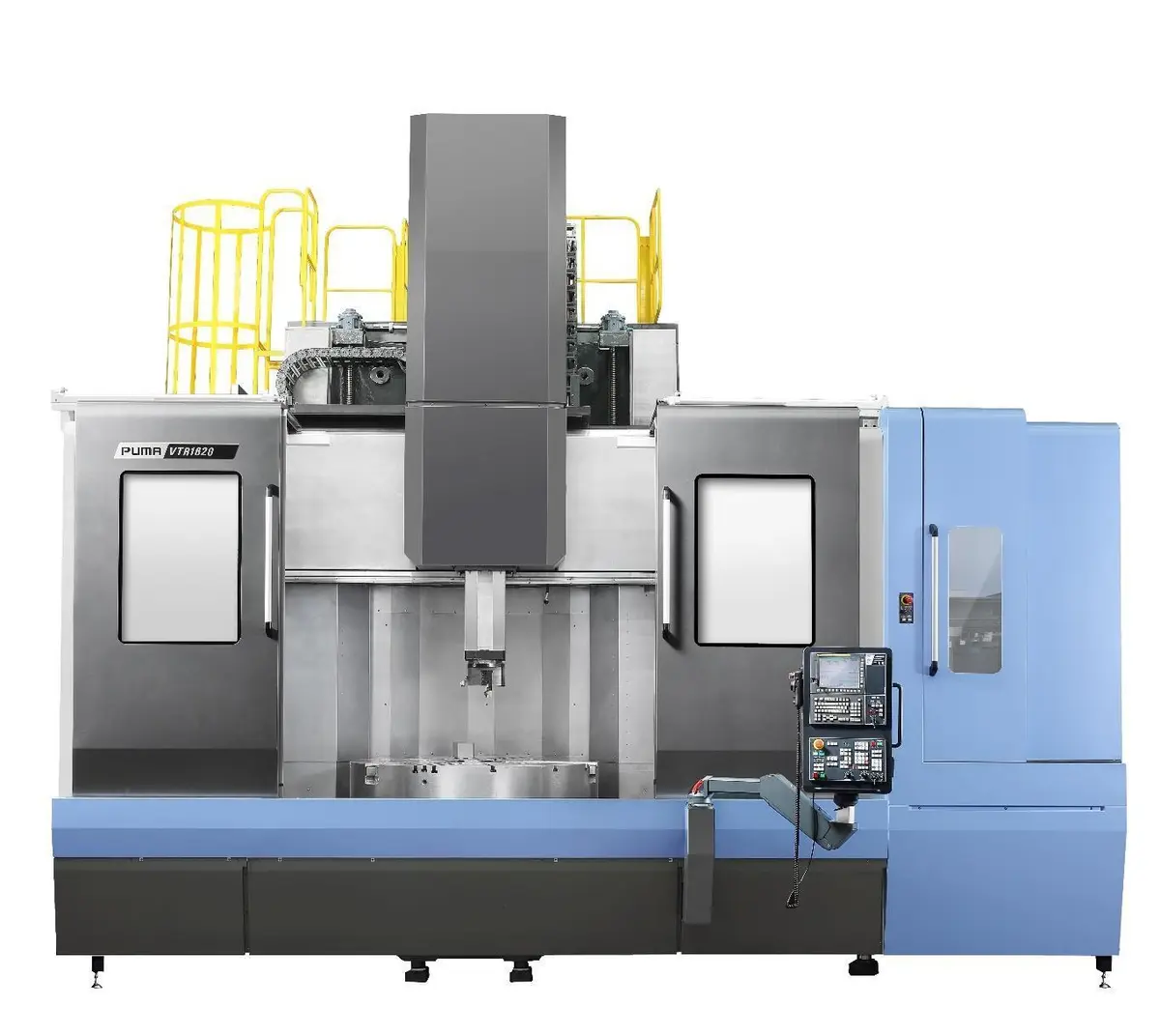

Puma VTR 1620M Vertical CNC Turning Center
Have one to sell?
ConditionNew
New
Puma VTR1620M live spindle, vertical turning centers are designed for large diameter parts requiring milling operations in addition to turning. The VTR1620M is well suited to larger parts typical of aerospace, oil and gas, construction, and wind turbine applications. The rigid design utilizes Meehanite® cast iron components and box way construction.
• Main spindle motor power, a40hv/7000_70/45/37 kw
• Chuck, 70 inch_conbination
• Dual pressure chucking
• Chuck clamp confirmation
• Tool storage capacity, turn-7ea/mill-8ea/cap-1ea
• Coolant gun
• Coolant pump for ram, 3.7 kw_3.0 mpa_cyclone filter
• Oil skimmer, belt type
• Automatic front door, with safety device
• Linear scales (X, Z axis)
• Chip conveyor type, hinged belt_3 conveyor side
• Tool setter, automatic_pneumatic
• Working platform, 1870(l)_1017(d)_476(h)
• Mist collector, preparation_hood only (d200)
• Electric cabinet light
• Electric line filter
• Automatic power off
• DNS tool load monitoring
• 3 color signal tower and work light
• Tool box with operating tools
• Additional LED Lights in Work Zone and ATC
• 435 PSI TTC with Cyclone Filter
• 2MB-1000 ea part program storage
