New

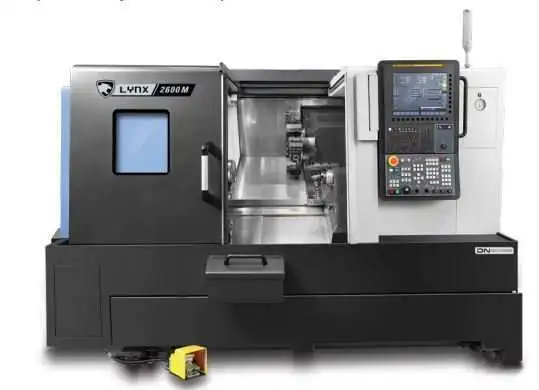

Lynx 2600M High Performance 3-Axis Turning Center
CNC LathesLynx 2600M turning centers are designed for long-term, high accuracy and
superior surface finishes. High speed turret indexing and ultra-fast rapid
traverse rates minimize non-cutting time. Mill-drill capability reduces the
need for secondary machining on other machines, helping to eliminate
additional machine set-ups and handling costs. Classic manufacturing
methods and ultra-rigid construction are combined with advanced
technological features to provide exceptional value.
Swing | 24.8" | 629.92 mm |
Machining Length | 24" | 609.6 mm |
# Axis | 3 | 3 |
Chuck Size | 10" | 254 mm |
Bar Capacity | 3.23" | 82.042 mm |
Power | 25 hp | 18.6 kW |
Max RPM | 3,500 RPM | 3,500 RPM |
Turning Dia | 14.96" | 379.98 mm |
Tailstock | Yes | Yes |
Live Tooling | Yes | Yes |
Control | CNC (Fanuc OiTP) | CNC (Fanuc OiTP) |
