New

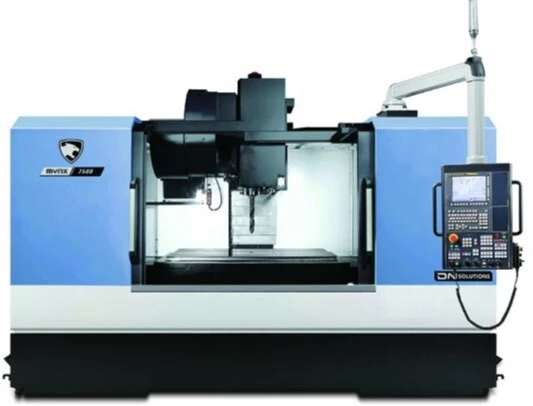

Mynx 7500/50 II Heavy Duty Vertical Machining Center
Vertical Machining CentersThe Mynx 7500 Vertical Machining Center is designed for heavy duty cutting, high accuracy and superior surface finishes over a wide range of applications. Featuring an arch shaped column structure and large, box type guideways, the Mynx 7500 provides unrivaled rigidity and unsurpassed performance for heavy duty machining.
X | 60" | 1,524 mm |
Y | 30.31" | 769.87 mm |
Z | 24.6" | 624.84 mm |
Power | 30 hp | 22.4 kW |
RPM | 6,000 RPM | 6,000 RPM |
# ATC | 48 | 48 |
Taper | Cat 50 Big Plus | Cat 50 Big Plus |
Table-W | 29.5" | 749.3 mm |
Table-L | 63" | 1,600.2 mm |
# Axis | 3 | 3 |
Control | CNC (Fanuc OiMP) | CNC (Fanuc OiMP) |
