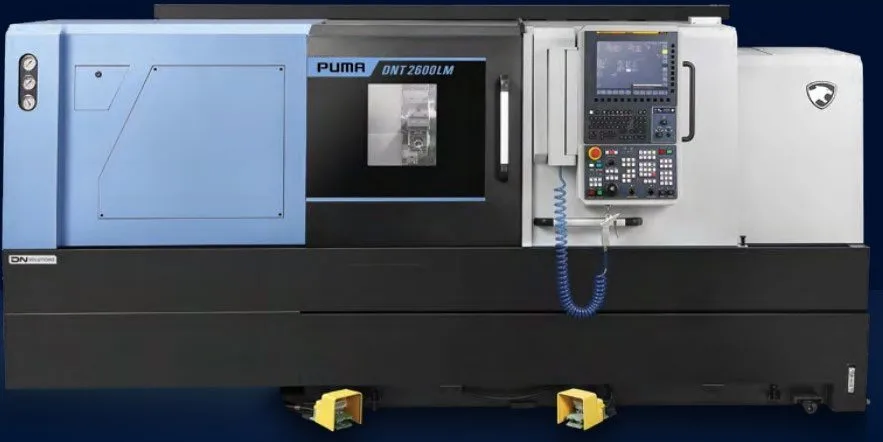

Puma DNT2600LM turning centers are designed for heavy and interrupted cutting, long-term high accuracy and superior surface finishes. The oversized spindle bore and draw tube can accommodate bars up to 3.0" diameter. High speed turret indexing and fast rapid traverse rates minimize non-cutting time. Mill-drill capability reduces the need for secondary machining on other machines. It also helps to eliminate additional machine set-ups and handling costs. Classic manufacturing methods and ultra-rigid construction are combined with advanced technological features to provide exceptional value.
|Machining Length||40.5"||1,028.7 mm|
|Chuck Size||10"||254 mm|
|Bar Capacity||3.23"||82.042 mm|
|Power||35 hp||26.1 kW|
|Max RPM||3,500 RPM||3,500 RPM|
|Turning Dia||14.96"||379.98 mm|
|Control||CNC (Fanuc OiTP)||CNC (Fanuc OiTP)|
