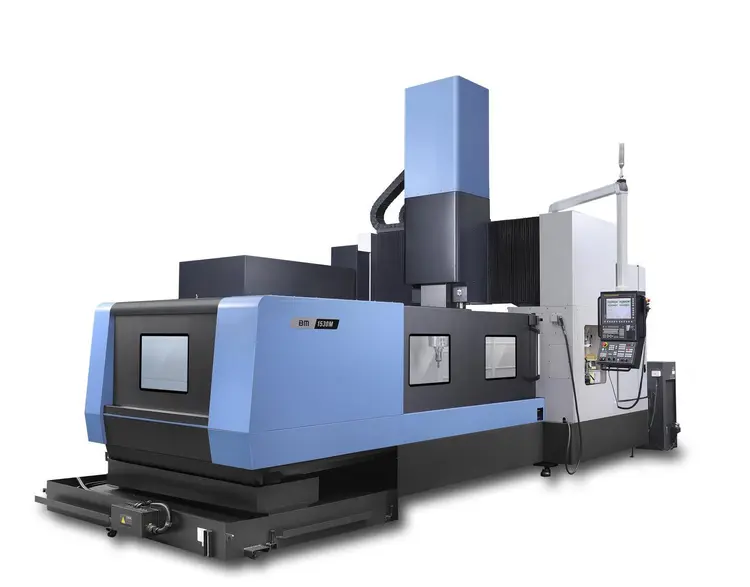

BM 1530M High Precision Bridge Mill

Have one to sell?

sales@mtssales.com

ConditionNew

Quantity

DN Solutions BM 1530M Gantry Machining Centers (incld. Bridge & Double Column) | Machine Tool Specialties (1)

DN Solutions BM 1530M Gantry Machining Centers (incld. Bridge & Double Column) | Machine Tool Specialties

New

Have one to sell?

Overview

Type:

Gantry Machining Centers (incld. Bridge & Double Column)

Manufacturer:

Model:

BM 1530M

Condition:

Build To Order

Stock #:

209219

Status:

For Sale

Description

The BM1530M is a 50 taper, rigid, high speed, machining centers able to perform all types of machining processes, for medium to large sized die & mold parts. It is a high precision, vertical machining center, that features a high-strength structural design. The BM1530M provides the highest processing speeds among its competitors within its class. This design allows greater productivity and machining levels in mold steels.

Specifications

ImperialMetric

X	118.1"	2,999.7 mm
Y	61"	1,549.4 mm
Z	31.5"	800.1 mm
Power	40 hp	29.8 kW
RPM	12,000 RPM	12,000 RPM
# ATC	40	40
Taper	Cat 50 Big Plus	Cat 50 Big Plus
Table-W	53.1"	1,348.7 mm
Table-L	118.1"	2,999.7 mm
Control	CNC (FANUC 31i-B)	CNC (FANUC 31i-B)
Dimensions	28.5' x 14.6' x 16'	28.5' x 14.6' x 16'
Weight	63,934 lbs	63,934 lbs
