New

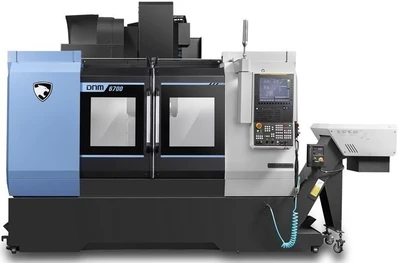

DNM 6700 4th Generation
Vertical Machining CentersBuilding on the history of the well proven and successful DNM and DNM ll series, this next generation of DNM Vertical Machining Centers boasts even greater reliability and performance.
X | 51.18" | 1,300 mm |
Y | 26.38" | 670.05 mm |
Z | 24.6" | 624.84 mm |
Power | 24.8 hp | 18.5 kW |
RPM | 15,000 RPM | 15,000 RPM |
# ATC | 60 | 60 |
Taper | Cat 40 Big Plus | Cat 40 Big Plus |
Table-W | 26.37" | 669.8 mm |
Table-L | 59.05" | 1,499.9 mm |
# Axis | 3 | 3 |
Control | CNC (FANUC 0i-Plus) | CNC (FANUC 0i-Plus) |
