| X | 41.33" | 1,049.8 mm |
| Y | 22.44" | 569.98 mm |
| Z | 20.08" | 510.03 mm |
| Power | 24.8 hp | 18.5 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 30 | 30 |
| Taper | Cat 40 Big Plus | Cat 40 Big Plus |

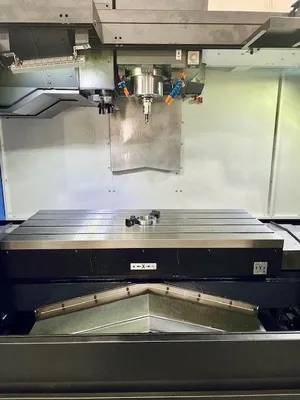

| Table-W | 22.44" | 569.98 mm |
| Table-L | 51.18" | 1,300 mm |
| # Axis | 3 | 3 |

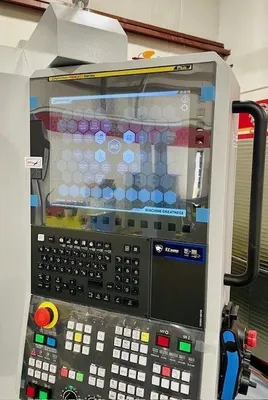

| Control | CNC (Fanuc OiMP) | CNC (Fanuc OiMP) |
Tsudakoma RWA-200 Rotary table with 8", 3-jaw manual chuck and tailstock
HNG-103776V left hand conveyor
OMP60-40 Renishaw Part probe
OTS-AA Renishaw touch trigger tool setter
REN-CAT40CAL Tool setter calibration master
REN-RINGGAGE Spindle probe calibration ring
