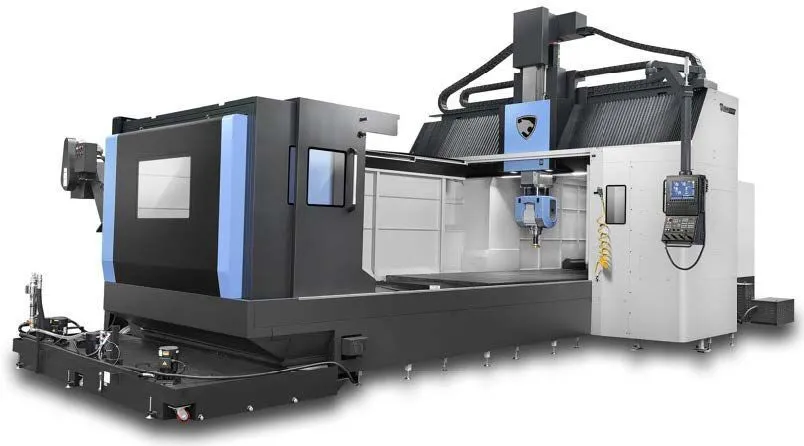

DN Solutions DBM 3080U Bridge Type Machining Center
Have one to sell?
ConditionNew
New
The DBM 3080U is a multi-purpose, fixed cross rail, full 5-axis, double-column machining center for applications such as heavy-duty machining of large parts and high precision dies and molds. Designed with the highest specifications in its class, the DBM 3080U provides a broad range of machining capabilities and optional equipment, together with many convenient functions for the operator.
The highly rigid, square type box guideway ram has a cross section of 380 x 380mm (14.96 x 14.96 inch), which is the biggest in its class. The ram slides on (8) anti-friction guides that are the full height of the saddle for extremely high rigidity and vibration dampening.
Regulation, ETL (North America Standard)
System Unit Setting, Inch
Power Source, 3 Ph_AC380V_60Hz
Nc System, Fanuc 31i-B Plus
Display Unit Size, 15.0 Color With Touch Panel
U-Head 30,000 R/Min_HSK 63
Fanuc 31i-B5 Plus
StdTable(2500X8000,15000Kg) T-Slot 24H8X10, Std
Linear Scale (X/Y/Z Axis)
Tool Storage Capacity_60Ea
Air Gun
Coolant Tank Main(1600L)+Sub_Clean(500L)
Flood Coolant_1.1 kW_1.0 Mpa_20 L/Min G
Flushing Coolant_1.1 kW
Coolant Gun
Oil Skimmer_Belt Type
2-Side Chip Conveyor_Hinged Belt Type
Lift-Up C/Conveyor_Ground Level Install_Drum Filter
Air Conditioner
Installation_Pit
RMP600_Probe, Block, Ring Gauge
Datum Ball(D25)
Full Splash Guard
Tool Setter, NC4_Renishaw
Master Tool _Ball Type
Step_Operation
Mist Collectors - Dual 1200 CFM
Main Op. Panel
MDI / Display Unit (15" Color LCD)
AICC 1000Block
Auto Power Off
1-MPG With Position Display
Internal Transformer (Down To 220V)
Data Server_4GB
Auto Power On
Mono Lever Switches
Power Source_3 Ph_AC380V_60Hz
Electric Cabinet Light
Electric Line Filter
Part Program Storage_10240M(4MB)_4000 Ea
Number Of Tool Offsets_400 Pairs
HSK-A100 Tool Adaption
TSC 70 Bar - Dual Filter - Factory Unit
Rotary Feedback Scales B/C Axes
Leakage Breaker
