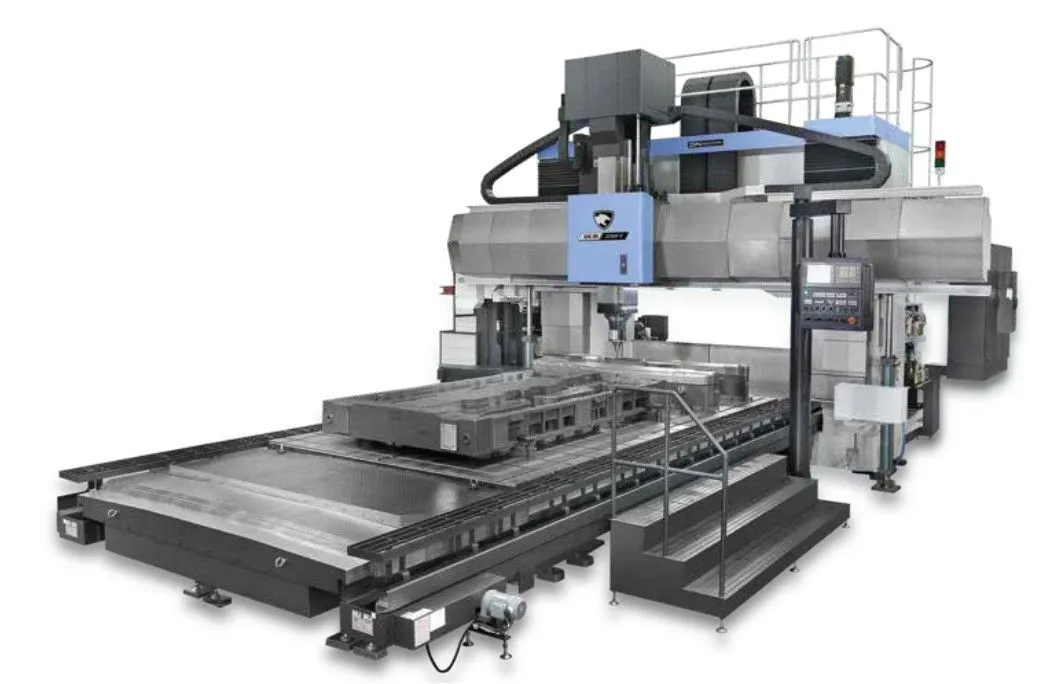

DN Solutions DCM 2750 II Multi-Purpose Double Column Machining Center
Have one to sell?
ConditionNew
New
The DCM II series is a multi-purpose double column machining center for applications such as
heavy duty machining of large parts and high precision dies and molds. Designed with the highest
specifications in its class, the DCM II series provides a broad range of machining capabilities and
optional equipment, together with many convenient functions for the operator.
Main Spindle Indexing Angle, 5 Degree Indexing
Through Spindle Coolant-TSC, 435 PSI (includes TSA)
High Column, High Column 350 Mm_H2000 Mm
Linear Scale (X Axis), Absolute Pulse Coder
Linear Scale (Y Axis), Absolute Pulse Coder
Linear Scale (Z Axis), Absolute Pulse Coder
Linear Scale (W Axis), Absolute Pulse Coder
Pendant Arm Type, Counter Balancing
Tool Storage Capacity, 120 Ea
Extension Axis (Z Axis), Absolute_Z1000 Stroke
Chip Conveyor Type, Side, Set of (2)
Chip Conveyor Type, Hinged Belt_Install_Under_L/R
90D Angle Head, 90D Angle_L350 3K R/Min, Upgrade from 4K
Coolant Tank Capacity, Coolant Tank 1000L
Oil Skimmer, Belt Type
Coolant Level Switch
Coolant Gun
Air Dryer
Auto. Workpiece Measurement, Rmp600_Renishaw
Calibration Block
Auto Attachment Measure - G120
Automatic Tool Measurement, Ts27R_Renishaw
Master Tool
Air Conditioner
Automatic Power On
Mpg, 1 Mpg_Display Type
Data Server, Function & Memory Card_4Gb
