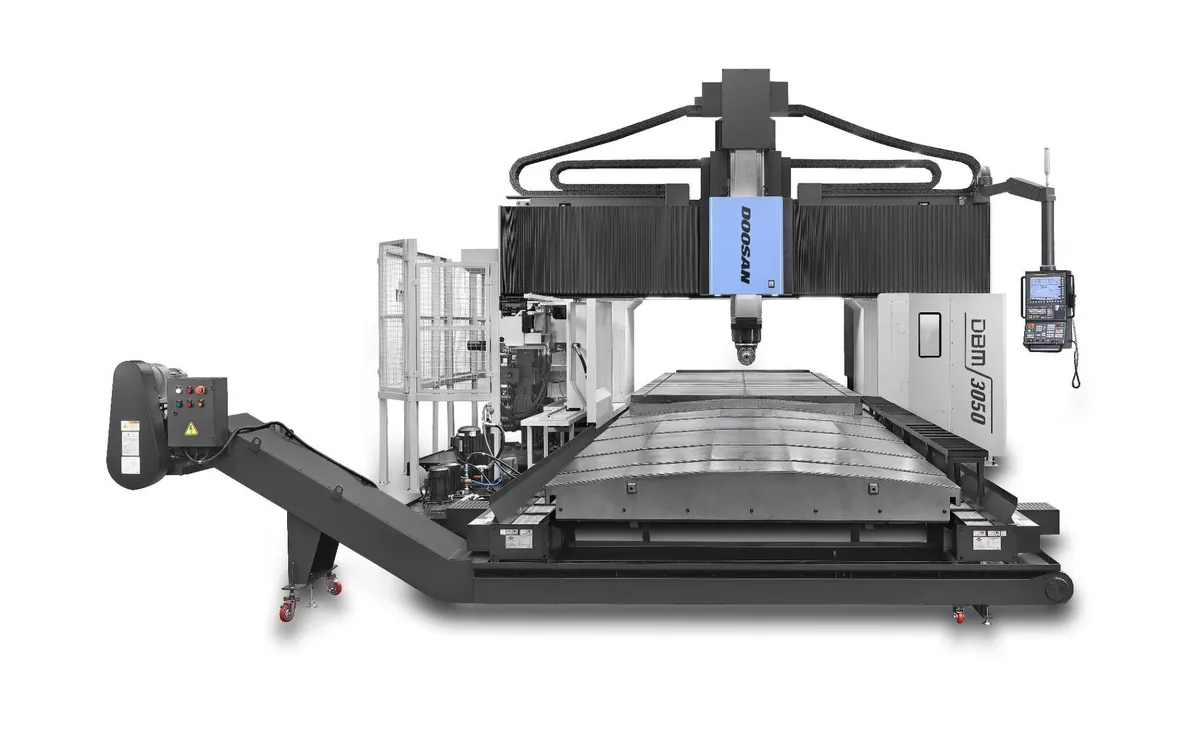

DN Solutions DBM 3060U Multi-Purpose Double Column Machining Center With Universal Head
Have one to sell?
ConditionNew
New
DBM machines are large, multi-purpose double column machining centers designed for applications that
include the heavy-duty machining of large parts and high precision dies and molds. With the highest technical specifications in its class, the DBM series provides customers with an extensive range of machining capabilities and functions to help them improve their productivity and performance.
U-Head 15,000 R/Min (34/45.9 kW)_HSK 100, Std
Fanuc 31i-B5 Plus, Std
Linear Scale (X/Y/Z Axis)
Tool Storage Capacity_60Ea
Air Gun
Coolant Tank Main(1600L)+Sub_Clean(500L)
Flood Coolant_1.1 kW_1.0 Mpa_20 L/Min G
Flushing Coolant_2.2 KW_1.0 MPA_35 L/MIN
Coolant Gun
Oil Skimmer_Belt Type
2-Side Chip Conveyor_Hinged Belt Type
Lift-Up C/Conveyor_Ground Level Install_Hinge Belt
Air Conditioner
Installation_Ground Level
RMP600_Probe, Block, Ring Gauge
Datum Ball(D25)
Full Splash Guard
Tool Setter, NC4_Renishaw, Blue Type
Master Tool _Ball Type
Step_Operation
Mist Collectors - Dual 1200 CFM
AICC 1000Block
Auto Power Off
1-MPG With Position Display
Internal Transformer (Down To 220V)
Data Server_4GB
Auto Power On
Mono Lever Switches
Power Source_3 Ph_AC380V_60Hz
Electric Cabinet Light
Electric Line Filter
Part Program Storage_10240M(4MB)_4000 Ea
Number Of Tool Offsets_400 Pairs
HSK-A100 Tool Adaption
TSC 70 Bar - Dual Filter - Factory Unit
Rotary Feedback Scales B/C Axes
Leakage Breaker
Fast Ethernet Card
G00 Positioning in 5-axis, G01 Linear Interpolation in 5-axis & G02/G03 Circular Interpolation in 2-axis
High-Speed Smooth TCP
G68.2 Tilted Working Plane Indexing Command
Retraction for 3-dimensional Rigid Tapping
3-dimensional Tool Compensation
