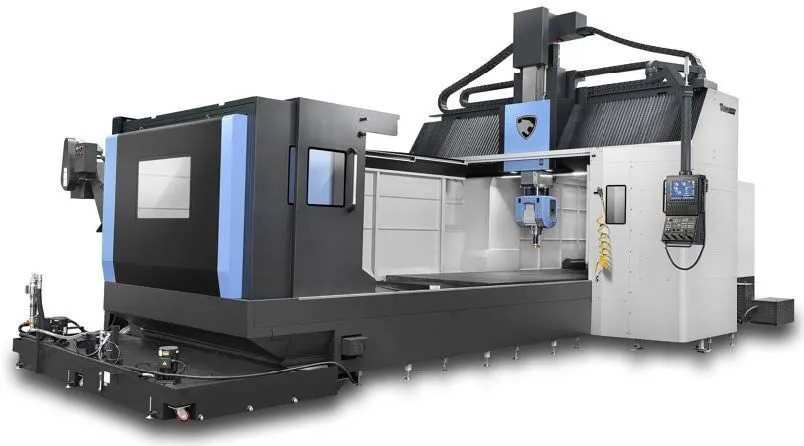

DN Solutions DBM 2550U Bridge Type Machining Center
Have one to sell?
ConditionNew
New
The DBM 2550U is a multi-purpose, fixed cross rail, full 5-axis, double-column machining center for applications such as heavy-duty machining of large parts and high precision dies and molds. Designed with the highest specifications in its class, the DBM 2550U provides a broad range of machining capabilities and optional equipment, together with many convenient functions for the operator.
The highly rigid, square type box guideway ram has a cross section of 380 x 380mm (14.96 x 14.96 inch), which is the biggest in its class. The ram slides on (8) anti-friction guides that are the full height of the saddle for extremely high rigidity and vibration dampening.
The DBM 2550U is a multi-purpose, fixed cross rail, full 5-axis, double-column machining center for applications such as heavy-duty machining of large parts and high precision dies and molds. Designed with the highest specifications in its class, the DBM 2550U provides a broad range of machining capabilities and optional equipment, together with many convenient functions for the operator.
The highly rigid, square type box guideway ram has a cross section of 380 x 380mm (14.96 x 14.96 inch), which is the biggest in its class. The ram slides on (8) anti-friction guides that are the full height of the saddle for extremely high rigidity and vibration dampening.
Imperial
| X | 206.7" |
| Y | 118" |
| Z | 39.4" |
| Power | 61 hp |
| RPM | 15,000 RPM |
| # ATC | 60 |
| Taper | HSK100 |
| Table-W | 78.7" |
| Table-L | 196.8" |
| Control | CNC (Fanuc 31iB5-Plus) |
