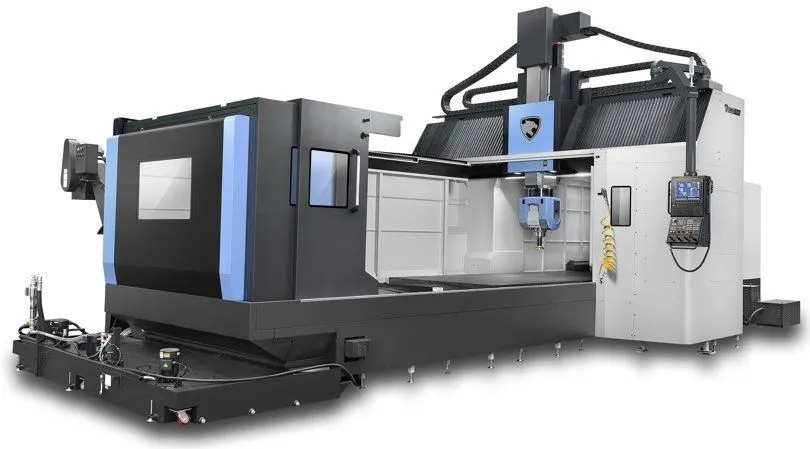

DN Solutions DBM 2030U Bridge Type Machining Center
Have one to sell?
ConditionNew
New
The DBM 2030U is a multi-purpose, fixed cross rail, full 5-axis, double-column machining center for applications such as heavy-duty machining of large parts and high precision dies and molds. Designed with the highest specifications in its class, the DBM 2030U provides a broad range of machining capabilities and optional equipment, together with many convenient functions for the operator.
The highly rigid, square type box guideway ram has a cross section of 380 x 380mm (14.96 x 14.96 inch), which is the biggest in its class. The ram slides on (8) anti-friction guides that are the full height of the saddle for extremely high rigidity and vibration dampening.
U-Head 30,000 R/Min_HSK A63
Fanuc 31i-B5 Plus
Linear Scale (X/Y/Z Axis)
Tool Storage Capacity_60Ea
Air Gun
Coolant Tank Main(1600L)+Sub_Clean(500L)
Flood Coolant_1.1 kW_1.0 Mpa_20 L/Min G
Flushing Coolant_1.1 kW _2.2kW
Coolant Gun_0.5bar
Oil Skimmer_Belt Type
2-Side Chip Conveyor_Hinged Belt Type
Lift-Up C/Conveyor_Drum Type_Ground Level
Operator step
Air Conditioner
Installation_Ground Level
RMP600_Probe, Block, Ring Gauge
Datum Ball(D25)
Full Splash Guard
Auto Door
Tool Setter, NC4_Renishaw, Blue Type
Master Tool _Ball Type
Mist Collectors - Dual 1200 CFM
Main Op. Panel
MDI / Display Unit (15" Color LCD)
AICC 1000Block
Auto Power Off
1-MPG With Position Display
Internal Transformer (Down To 220V)
Data Server_4GB
Auto Power On
Mono Lever Switches
Power Source_3 Ph_AC380V_60Hz, 200kVA aprox.
Electric Cabinet Light
Electric Line Filter
Part Program Storage_10240M(4MB)_4000 Ea
Number Of Tool Offsets_400 Pairs
TSC 70 Bar - Dual Filter - Factory Unit
Rotary Feedback Scales B/C Axes
Leakage Breaker
Fast Ethernet Card
G00 Positioning in 5-axis, G01 Linear Interpolation in 5-axis & G02/G03 Circular I
High-Speed Smooth TCP
G68.2 Tilted Working Plane Indexing Command
Retraction for 3-dimensional Rigid Tapping
3-dimensional Tool Compensation
MP Systems Purge SD – 4 Bag Filter System
The DBM 2030U is a multi-purpose, fixed cross rail, full 5-axis, double-column machining center for applications such as heavy-duty machining of large parts and high precision dies and molds. Designed with the highest specifications in its class, the DBM 2030U provides a broad range of machining capabilities and optional equipment, together with many convenient functions for the operator.
The highly rigid, square type box guideway ram has a cross section of 380 x 380mm (14.96 x 14.96 inch), which is the biggest in its class. The ram slides on (8) anti-friction guides that are the full height of the saddle for extremely high rigidity and vibration dampening.
Imperial
| X | 127.9" |
| Y | 98.4" |
| Z | 39.4" |
| Power | 61 hp |
| RPM | 30,000 RPM |
| # ATC | 60 |
| Taper | HSK A63 |
| Table-W | 59.1" |
| Table-L | 118" |
| Control | CNC (Fanuc 31iB5-Plus) |
| Weight | 81,570 lbs |
U-Head 30,000 R/Min_HSK A63
Fanuc 31i-B5 Plus
Linear Scale (X/Y/Z Axis)
Tool Storage Capacity_60Ea
Air Gun
Coolant Tank Main(1600L)+Sub_Clean(500L)
Flood Coolant_1.1 kW_1.0 Mpa_20 L/Min G
Flushing Coolant_1.1 kW _2.2kW
Coolant Gun_0.5bar
Oil Skimmer_Belt Type
2-Side Chip Conveyor_Hinged Belt Type
Lift-Up C/Conveyor_Drum Type_Ground Level
Operator step
Air Conditioner
Installation_Ground Level
RMP600_Probe, Block, Ring Gauge
Datum Ball(D25)
Full Splash Guard
Auto Door
Tool Setter, NC4_Renishaw, Blue Type
Master Tool _Ball Type
Mist Collectors - Dual 1200 CFM
Main Op. Panel
MDI / Display Unit (15" Color LCD)
AICC 1000Block
Auto Power Off
1-MPG With Position Display
Internal Transformer (Down To 220V)
Data Server_4GB
Auto Power On
Mono Lever Switches
Power Source_3 Ph_AC380V_60Hz, 200kVA aprox.
Electric Cabinet Light
Electric Line Filter
Part Program Storage_10240M(4MB)_4000 Ea
Number Of Tool Offsets_400 Pairs
TSC 70 Bar - Dual Filter - Factory Unit
Rotary Feedback Scales B/C Axes
Leakage Breaker
Fast Ethernet Card
G00 Positioning in 5-axis, G01 Linear Interpolation in 5-axis & G02/G03 Circular I
High-Speed Smooth TCP
G68.2 Tilted Working Plane Indexing Command
Retraction for 3-dimensional Rigid Tapping
3-dimensional Tool Compensation
MP Systems Purge SD – 4 Bag Filter System
