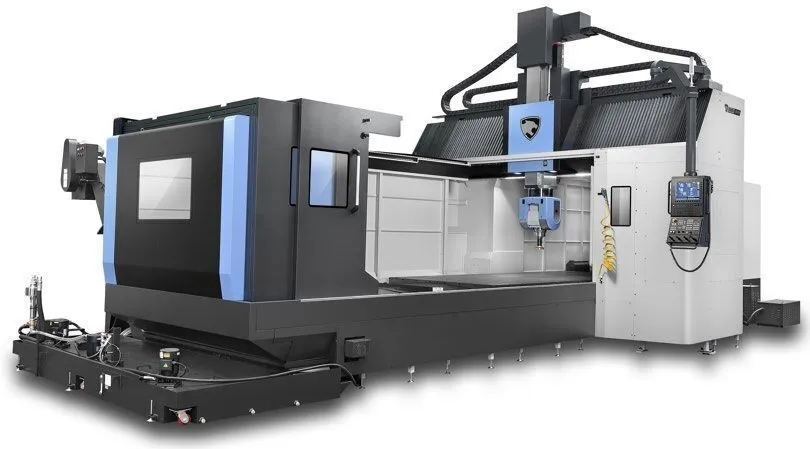

New DN SOLUTIONS DBM 2540U | 5-Axis Bridge Mills
Have one to sell?
ConditionNew
1 available
$1,604,500.00 USD
New
The DBM 2540U is a multi-purpose, fixed cross rail, full 5-axis, double-column machining center for applications such as heavy-duty machining of large parts and high precision dies and molds. Designed with the highest specifications in its class, the DBM 2540U provides a broad range of machining capabilities and optional equipment, together with many convenient functions for the operator.
The highly rigid, square type box guideway ram has a cross section of 380 x 380mm (14.96 x 14.96 inch), which is the biggest in its class. The ram slides on (8) anti-friction guides that are the full height of the saddle for extremely high rigidity and vibration dampening.
The DBM 2540U is a multi-purpose, fixed cross rail, full 5-axis, double-column machining center for applications such as heavy-duty machining of large parts and high precision dies and molds. Designed with the highest specifications in its class, the DBM 2540U provides a broad range of machining capabilities and optional equipment, together with many convenient functions for the operator.
The highly rigid, square type box guideway ram has a cross section of 380 x 380mm (14.96 x 14.96 inch), which is the biggest in its class. The ram slides on (8) anti-friction guides that are the full height of the saddle for extremely high rigidity and vibration dampening.
Imperial
| X | 167.3" |
| Y | 118.1" |
| Z | 39.4" |
| Power | 45.9 hp |
| RPM | 15,000 RPM |
| # ATC | 60 |
| Taper | HSK 100-A |
| Table-W | 78.7" |
| Table-L | 118.1" |
| Control | CNC (Fanuc 31i-B5 Plus) |
| Dimensions | 293.3 x 565.0 |
| Weight | 101,411lbs |
